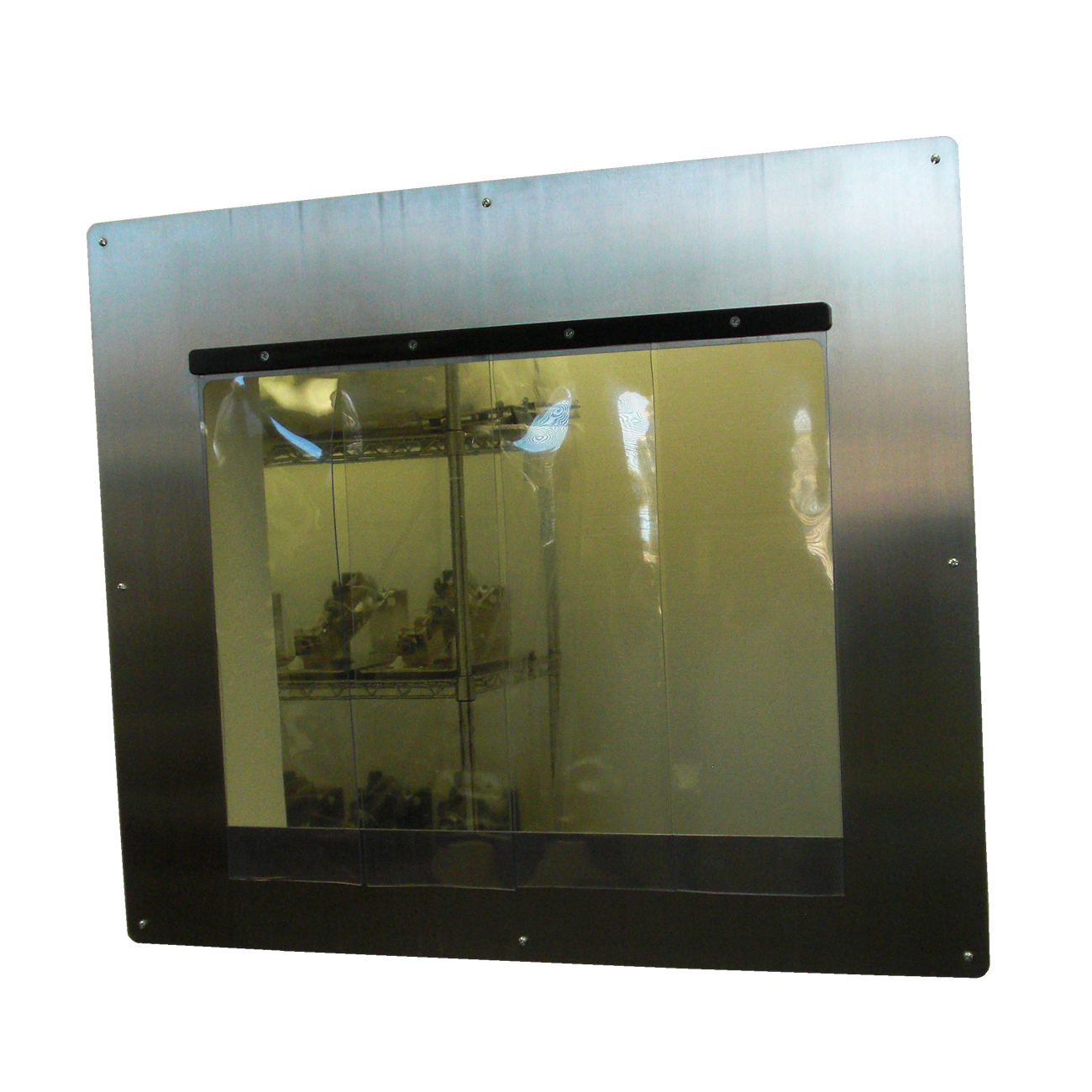

AMT-300 Economy Pass-Thru Window
The AMT-300 is an economical approach to passing goods in and out of a controlled environment or clean room. This window features a curtain of semi-transparent industrial flaps that reasonably maintain room air pressure yet allow goods to pass through quickly and easily. The curtain bracket is made of anodized aluminum and the wall plate is stainless steel with a cosmetic brushed finish. The AMT-300 is designed for quick and easy installation and is designed for Class 10,000/ISO 7 clean rooms and controlled environments. No electrical or compressed air is required.
Technical Specifications
- Recommended finished wall opening: 24" W x 17" H
- Pass through opening: 24" W x 17" H
- Constructed with Class 10,000/ISO 5 clean room materials and hardware
- Unit weighs 13lbs/6kg
- Curtain material is semi-transparent
- Curtain material is anti-mildew, anti-insect and anti-glare vinyl
- Overall dimensions: 1" Max Thickness x 34" W x 28" H
- All hardware is stainless steel or zinc plated steel
- No electric or air power required
AMT-300 Models
- 300 - Stainless steel frame
