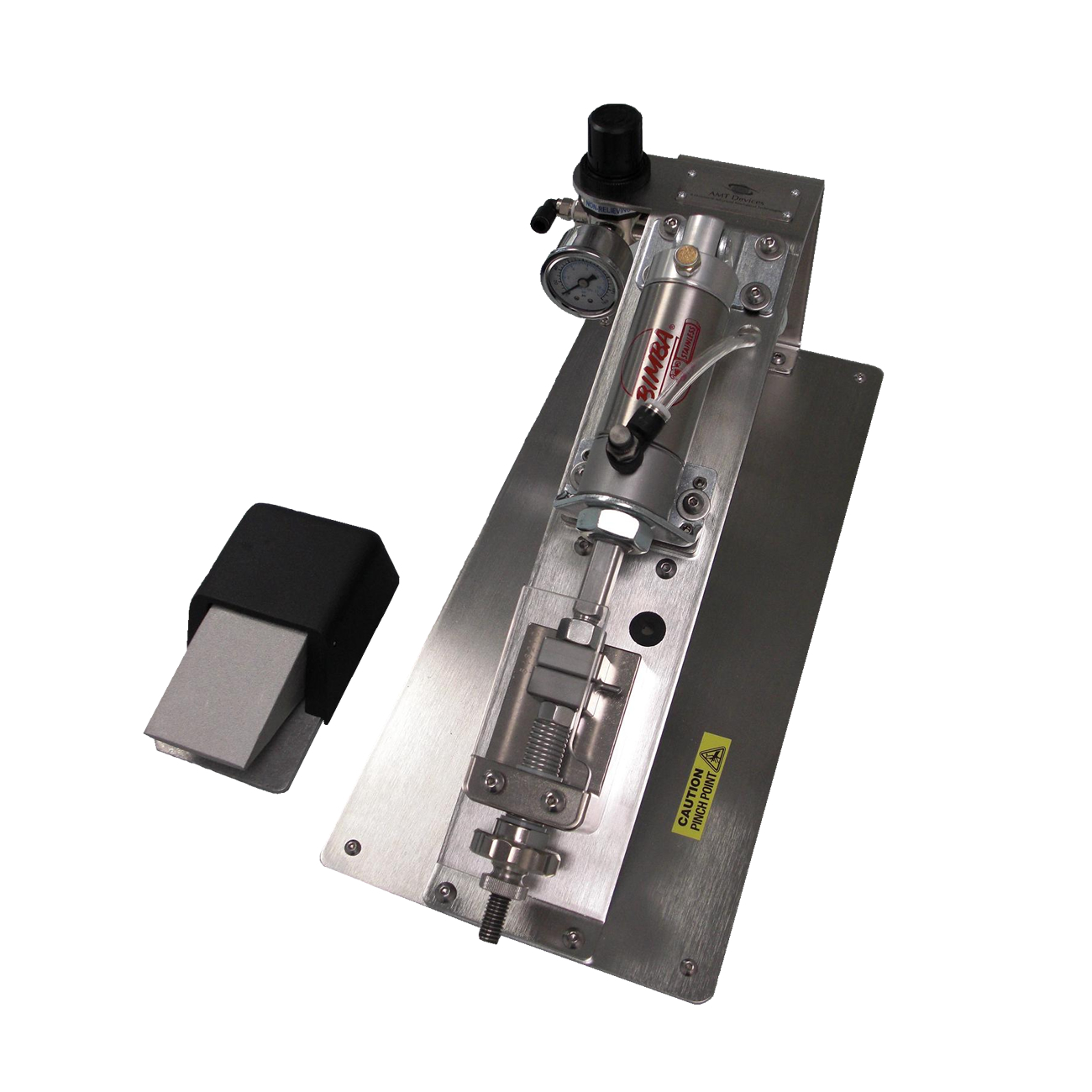

AMT-200 Tubing Expander

The AMT-200 Tubing Expander provides a safe and easy means of expanding flexible plastic tubing to allow fittings or other components to be inserted easily and reliably. This device features a foot switch, interchangeable jaw sets for expansion of a wide range of tube diameters, and an easy to validate, numbered jaw position adjustment.

Only a pressurized air source is required for operation. Units are available in powder coated steel or stainless steel. All units are designed for Class 10,000/ISO 7 clean room applications.

Technical Specifications

  • Expands flexible plastic tubing, including heat shrink and non-metallic braided materials, up to a Shore A 85 durometer
  • Expands tubing with an inside diameter of 1/16" to 1/2"
  • Standard jaw sets are universal and designed to be used with tubing with an inside diameter of 1/8" to 1/2" - available for "quick ship"
  • Straight jaw sizes are available - some sizes available for "quick ship"
  • Custom jaw sizes available by request - straight, tapered, or double-sided
  • Unit weighs 9.9lbs/4.5kg
  • Overall dimensions: 14.7" L x 7" W x 7" H
  • Requires 80-100 psi air



AMT-200 Models

  • 200 - Powder coat finish, comes with one standard jaw set
  • 200SS - Stainless steel frame, comes with one standard jaw set
