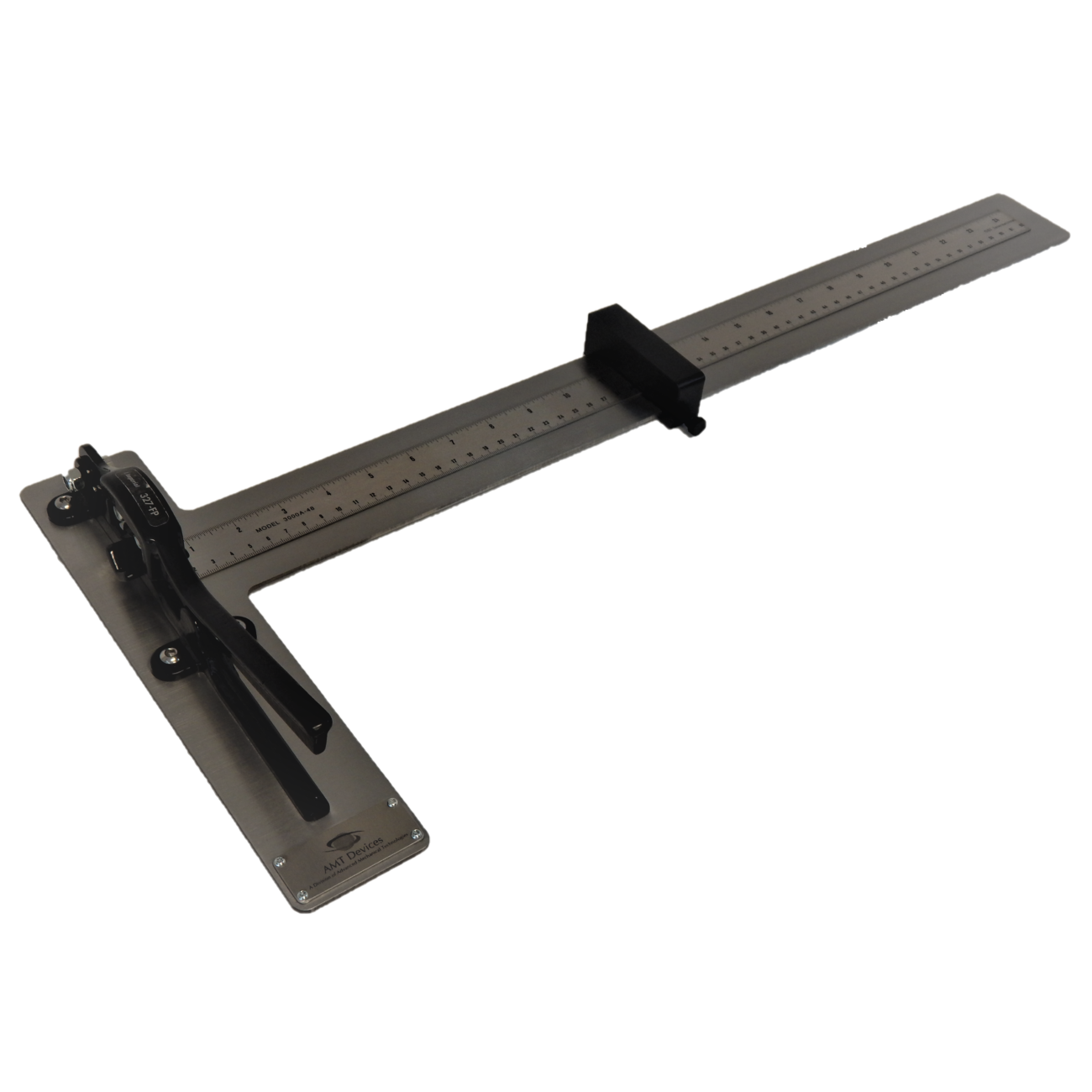

AMT-110 Manual Tubing Cutter
The AMT-110 Manual Tubing Cutter provides a simple, low budget means of manually cutting tubing quickly and accurately. This device features a manual cutting method, a stainless steel scale with Metric and English units, mounted to a grained and polished 304 stainless steel base.
Three lengths of the AMT-110 are available: 24 inch, 36 inch, and 48 inch. Base plate is grained and polished 304 stainless steel, other materials and finishes compatible with Class 10,000/ISO 7 clean rooms. No compressed air or electrical required.
Technical Specifications
- Cuts flexible tubing, including heat shrink and non-metallic braided materials, up to a Shore A 85 durometer
- Cuts tubing diameter 1/32" to 3/4"
- No changeover or accessories required
- Cuts lengths from 3/4" to 24", 36", or 48"
- Stop block included, cut lengths are repeatable within +/- 1/16"
- Unit weight for 24" [3.9lbs/1,8kg], 36" [4.7lbs/2,1kg], 48" [6.2lbs/2,8kg]
- Overall dimensions: 11.5" W x 10.25" H x 28", 40", & 52"
AMT-110 Models
- 110-24 - 24" Maximum cut length, English/Metric scale
- 110-36-36" Maximum cut length, English/Metric scale
- 110-48-48" Maximum cut length, English/Metric scale
Additional Information
- Watch the AMT-110 video (coming soon)
- Contact us for a copy of the AMT-110 Operation Manual
